Technical Specifications
Features
Sizes
- Widths from 8’ to 18’, in 1” increments.
- Heights from 6’6” to 8’, in 3” increments.
Please contact us for more details on oversized doors available.
Layouts
Princeton
The Princeton is only manufactured with a 30" high Panoramic section.

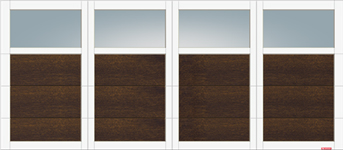

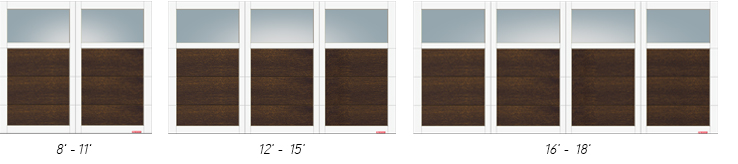

Princeton P-11 |
![]() |
8' to 11' |
![]() |
12' to 15' |
![]() |
16' to 18' |

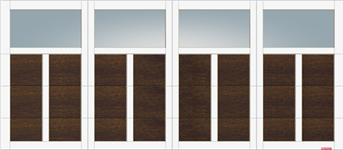

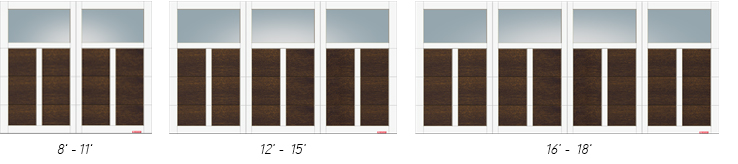

Princeton P-12 |
![]() |
8' to 11' |
![]() |
12' to 15' |
![]() |
16' to 18' |

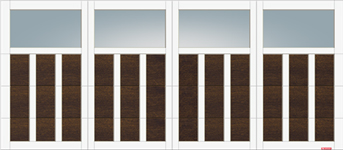

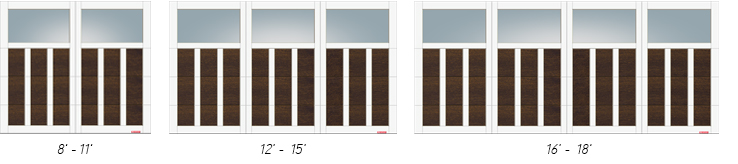

Princeton P-13 |
![]() |
8' to 11' |
![]() |
12' to 15' |
![]() |
16' to 18' |

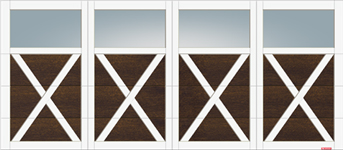

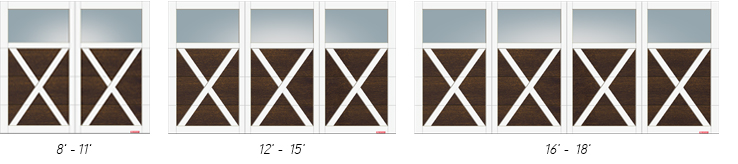

Princeton P-21 |
![]() |
8' to 11' |
![]() |
12' to 15' |
![]() |
16' to 18' |

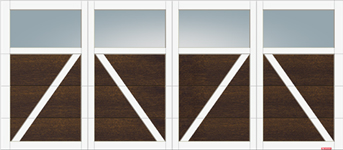

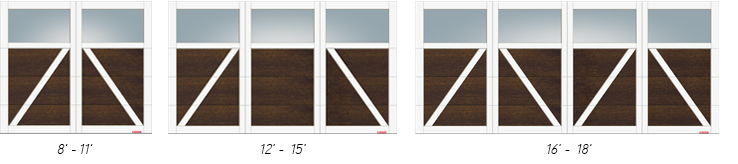

Princeton P-22 |
![]() |
8' to 11' |
![]() |
12' to 15' |
![]() |
16' to 18' |

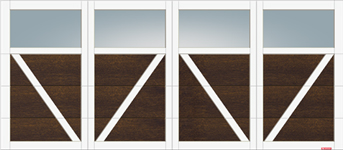

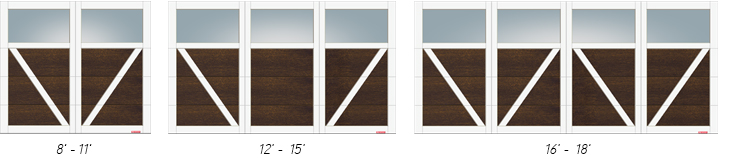

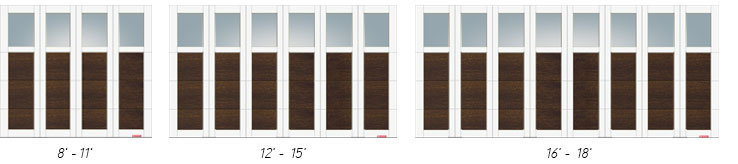

Princeton P-23 |
![]() |
8' to 11' |
![]() |
12' to 15' |
![]() |
16' to 18' |

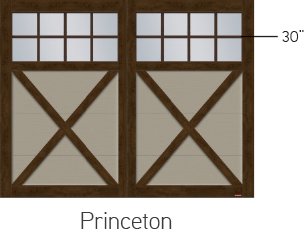

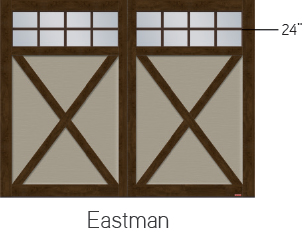

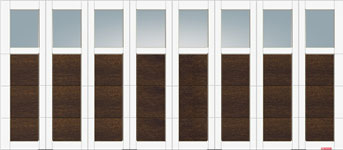

Example of panoramic for Princeton and Eastman


Eastman
The top section of the Eastman can have a 24" high Panoramic section, regular windows, or no windows.

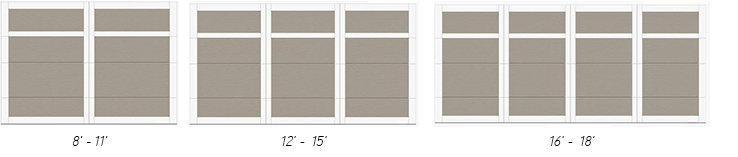

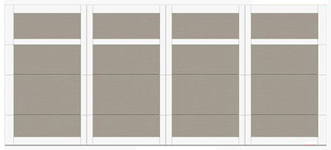

Eastman E-11 |
![]() |
8' to 11' |
![]() |
12' to 15' |
![]() |
16' to 18' |

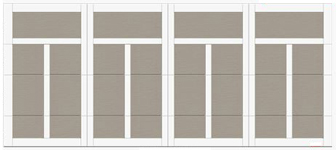

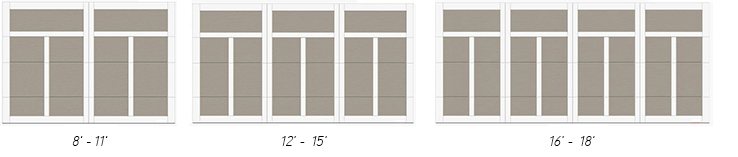

Eastman E-12 |
![]() |
8' to 11' |
![]() |
12' to 15' |
![]() |
16' to 18' |

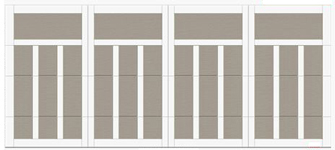

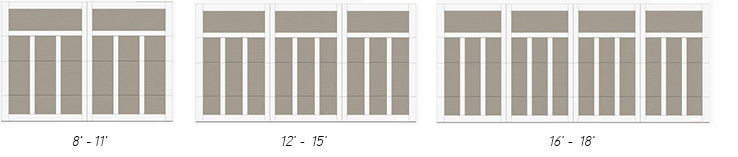

Eastman E-13 |
![]() |
8' to 11' |
![]() |
12' to 15' |
![]() |
16' to 18' |

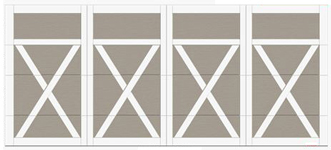

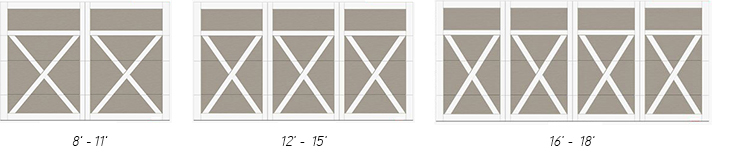

Eastman E-21 |
![]() |
8' to 11' |
![]() |
12' to 15' |
![]() |
16' to 18' |

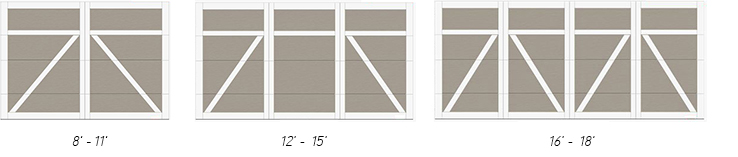

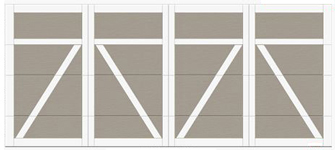

Eastman E-22 |
![]() |
8' to 11' |
![]() |
12' to 15' |
![]() |
16' to 18' |

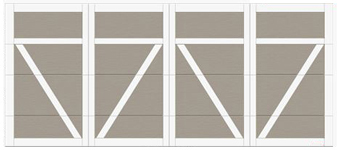

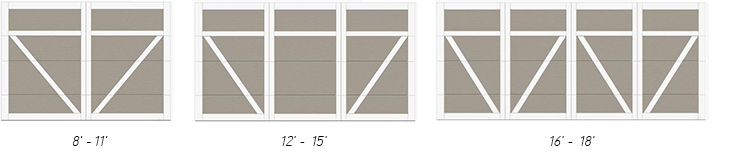

Eastman E-23 |
![]() |
8' to 11' |
![]() |
12' to 15' |
![]() |
16' to 18' |
Cambridge
Due to the architecture of the Cambridge, section heights are not identical.

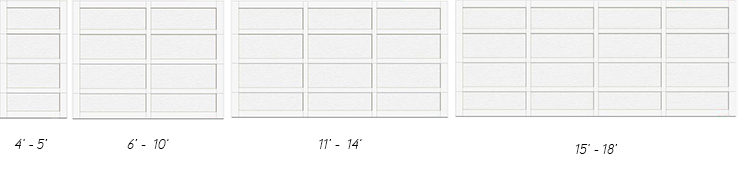

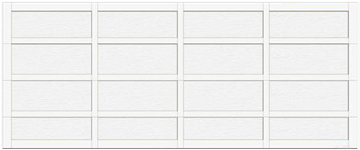

Cambridge CL (Stretched) |
![]() |
4' to 7' |
8' to 9' |
10' to 14' |
15' to 18' |

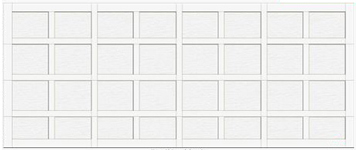

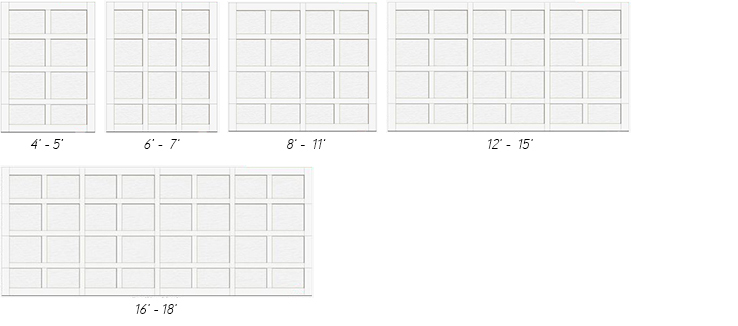

Cambridge CM (Traditional) |
![]() |
4' to 5' |
![]() |
6' to 7' |
![]() |
8' to 11' |
![]() |
12' to 15' |
![]() |
16' to 18' |

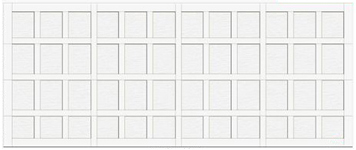

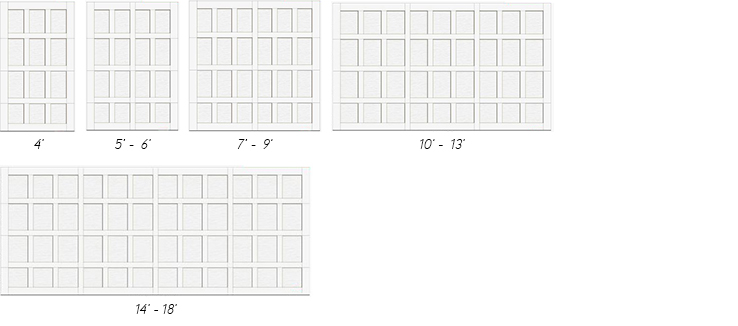

Cambridge CS (Condensed) |
![]() |
4' |
![]() |
5' to 6' |
![]() |
7' to 9' |
![]() |
10' to 13' |
![]() |
14' to 18' |

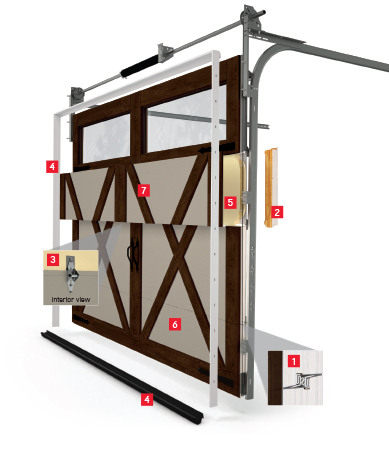

Garaga construction makes all the difference

Rugged & Durable

Thermally Efficient

Refined Design
1
|
INTERLOKTM JOINT |
![]() |
Located between sections, this joint blocks air infiltration due to its triple‑contact weatherseal. |
![]() |
Makes sections very strong as it is mechanically interlocked and not bonded. |
|
|
2
|
WOOD END BLOCKS |
![]() |
The most effective thermal breaks, they eliminate any transfer of cold or heat between materials. |
|
|
3
|
REINFORCED METAL PLATES |
![]() |
With 14‑gauge thickness, they are used to solidly attach hinges, handles and operator bracket. |
|
|
4
|
HIGH-PERFORMANCE WEATHERSTRIPPING |
![]() |
Our weatherstripping ensures increased weathertightness and stays flexible through the coldest temperatures. |
|
|
5
|
POLYURETHANE |
![]() |
High-pressure injected foam provides R‑16 thermal resistance for 2 ⅜” doors ( 1 ¾” plus overlays). |
![]() |
Because it adheres to the section walls, it provides a high level of rigidity to the door. |
|
|
6
|
CONTINUOUS WOODGRAIN |
![]() |
Up close or at a distance, our embossed woodgrain finish is flawless and very refined. |
|
|
7
|
OVERLAYS |
![]() |
LaserCraftTM Technology is used for a precise fit between overlays and our PermafixTM Process literally fuses them to the steel sections. |
To save energy, all components of a garage door must be taken into consideration (joints between sections, weatherstripping, end blocks, etc.) and not just its thermal resistance R-value as that only refers to the construction of the sections.
